GN Class '1' 4-4-0

'1' Quick Links:
Click for larger image History
Roster
Tenders
Diagram



Click for larger image

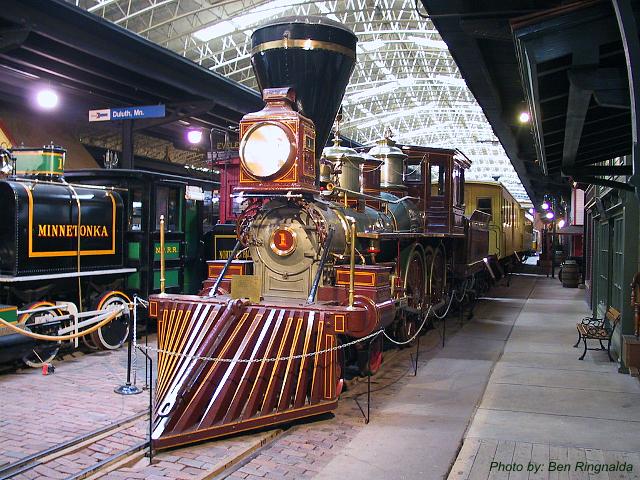

Class '1' 4-4-0 'William Crooks' General Data

Built:

?/1861

Cylinders:

12"x22"

Engine weight:

55,400 lbs.



Builder:

Smith and Jackson

Driver diameter:

63"

Weight on drivers:

35,950 lbs.



Number series:

M&P 1

St.P&P 1 'Wm. Crooks'

St.PM&M 1

Boiler pressure:

Design: 120 psi.

Operating: 110 psi.

Tractive effort:

4,700 lbs.

Sorry, history will be added later, but please scroll down to see the rest.
